Welding Power Sources

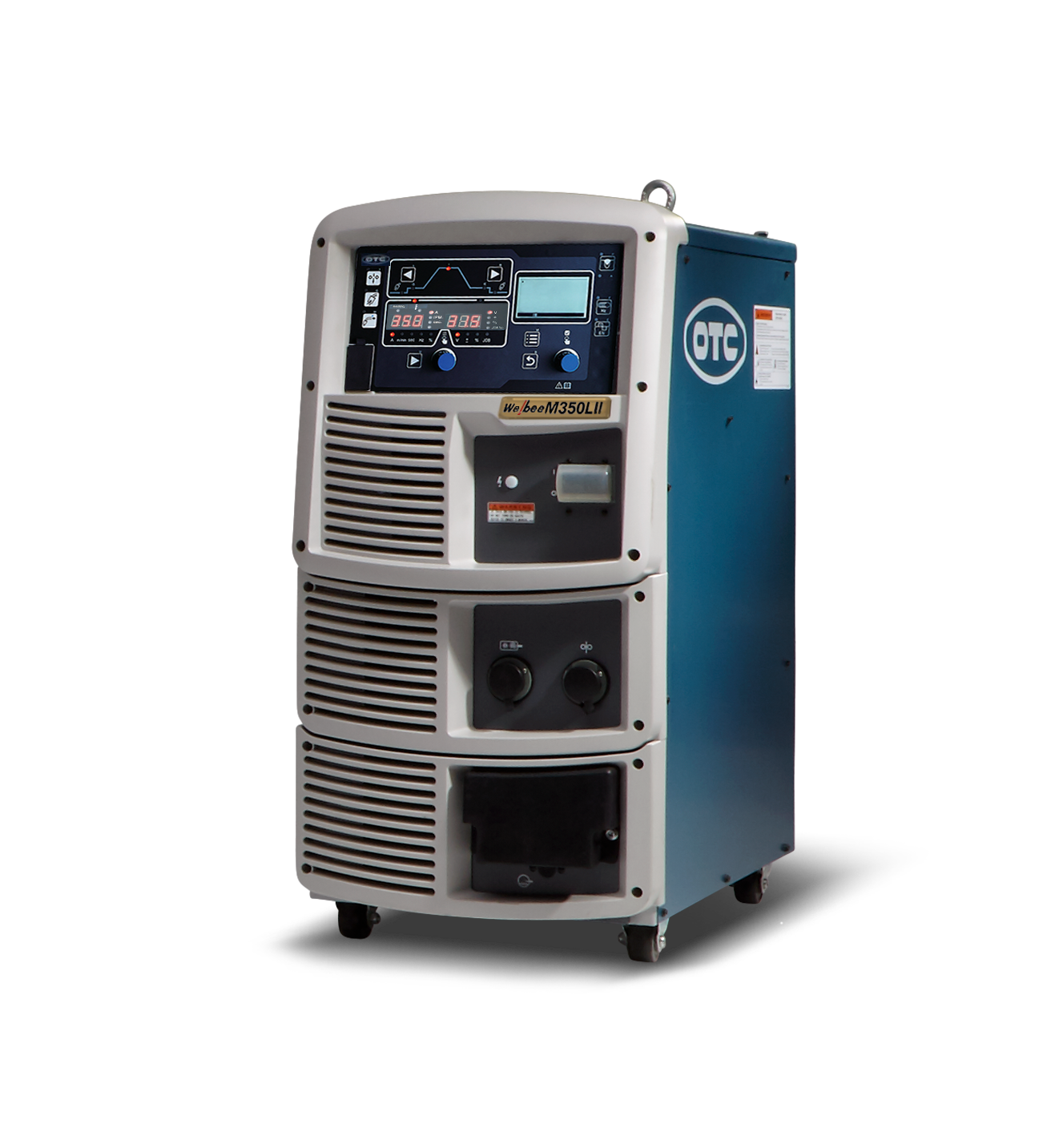

WB-M352L
350A low-spatter digital inverter power source, Synchro-Feed capable
The Welbee II M350L (WB-M352L) is a 350A digital inverter welding power source with low-spatter control and Synchro-Feed capability, producing exceptionally clean, low-spatter welds on steel and stainless steel.
100
Number of welding conditions
14º F to 104º F (-10 to +40º C)
Operating temperature range
less than 50%, 104º F (40º C), less than 90%, 68º F (20º C)
Operating humidity range
-4 to 131 °F (-20 to 55º C)
Storage Temperature Range
less than 50%, 104º F (40º C), less than 90%, 68º F (20º C)
Storage humidity range
Specifications
General
Number of welding conditions100
Operating temperature range14º F to 104º F (-10 to +40º C)
Operating humidity rangeless than 50%, 104º F (40º C), less than 90%, 68º F (20º C)
Storage Temperature Range-4 to 131 °F (-20 to 55º C)
Storage humidity rangeless than 50%, 104º F (40º C), less than 90%, 68º F (20º C)
Dimensions (W x D x H)15.6 x 28.0 x 31.9 in. (395 x 710 x 810mm)
Weight187.4 lbs (85 kg)
Output
Rated output current350A
Rated load voltage31.5V
Rated output current range20 - 350A
Rated output voltage range12.0 - 31.5V
Maximum no-load voltage79V
Rated duty cycle60%
Power Input
Number of phases3
Rated frequency50/60Hz
Rated input voltage208/230V
Input voltage range208/230V ±10%
Rated input power15.6kVA 13.4kW
Rated input current43.3A/38.5A
