ROTA-ARC Series

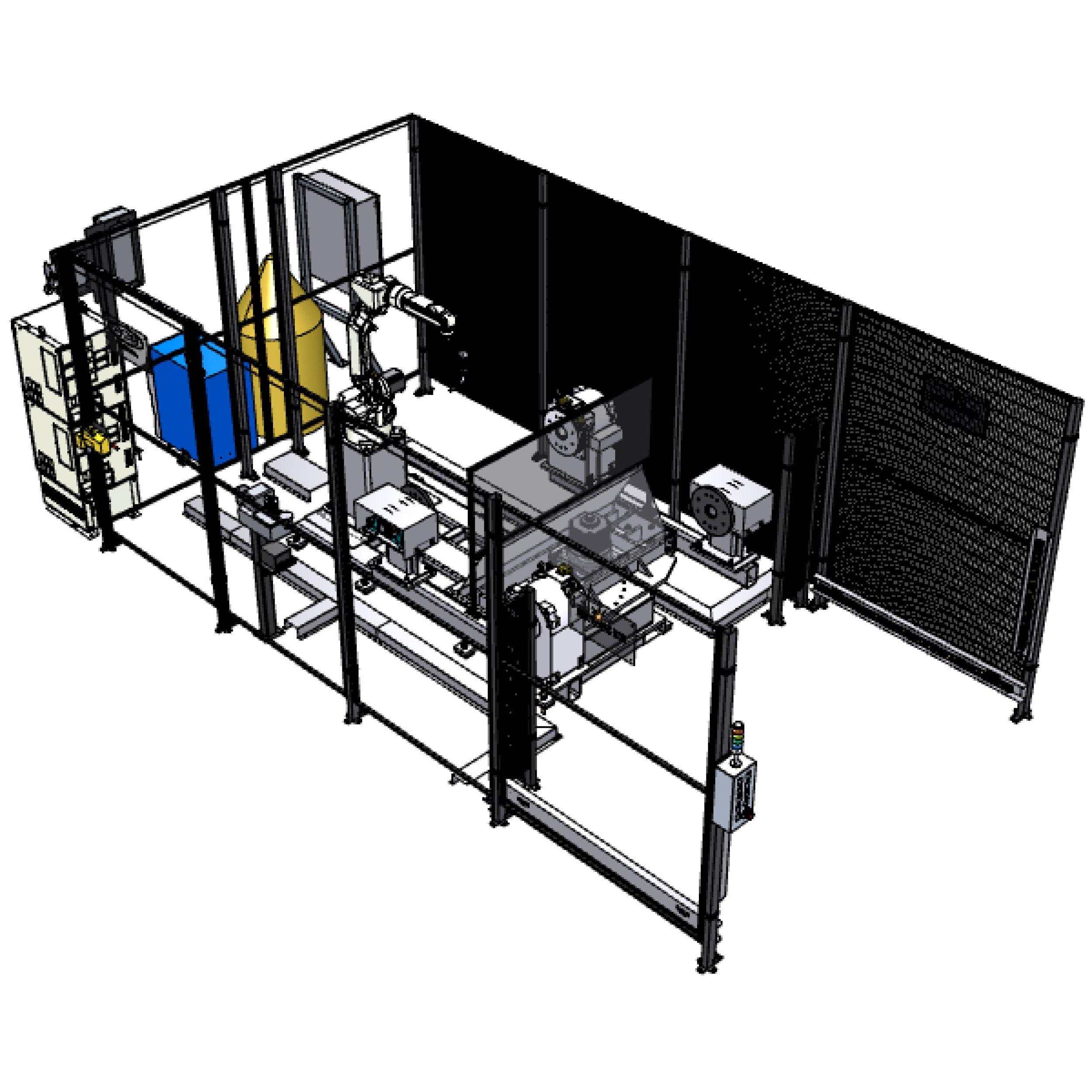

ROTA-ARC 500
Rotary-index arc welding cell, 500 kg class
The OTC ROTA-ARC 500 is a rotary-index welding cell for the 500 kg payload class, rotating parts between load and weld stations to keep the robot welding while the operator loads.
3347mm (131.8”)
Footprint Width
2200mm (86.6")
Footprint Height
6732mm (265.0”)
Footprint Depth
4250kg (9370lbs)
Weight (approx.)
1500mm (59.1")
Standard HS/TS span
Specifications
Dimensions
Footprint Width3347mm (131.8”)
Footprint Height2200mm (86.6")
Footprint Depth6732mm (265.0”)
General
Weight (approx.)4250kg (9370lbs)
Standard HS/TS span1500mm (59.1")
HS/TS swing diameter900mm (35.4")
Applicable manipulatorOTC DAIHEN FD-V8 or FD-B6
