ROTA-ARC Series
ROTA-ARC 250
Rotary-index arc welding cell, 250 kg class

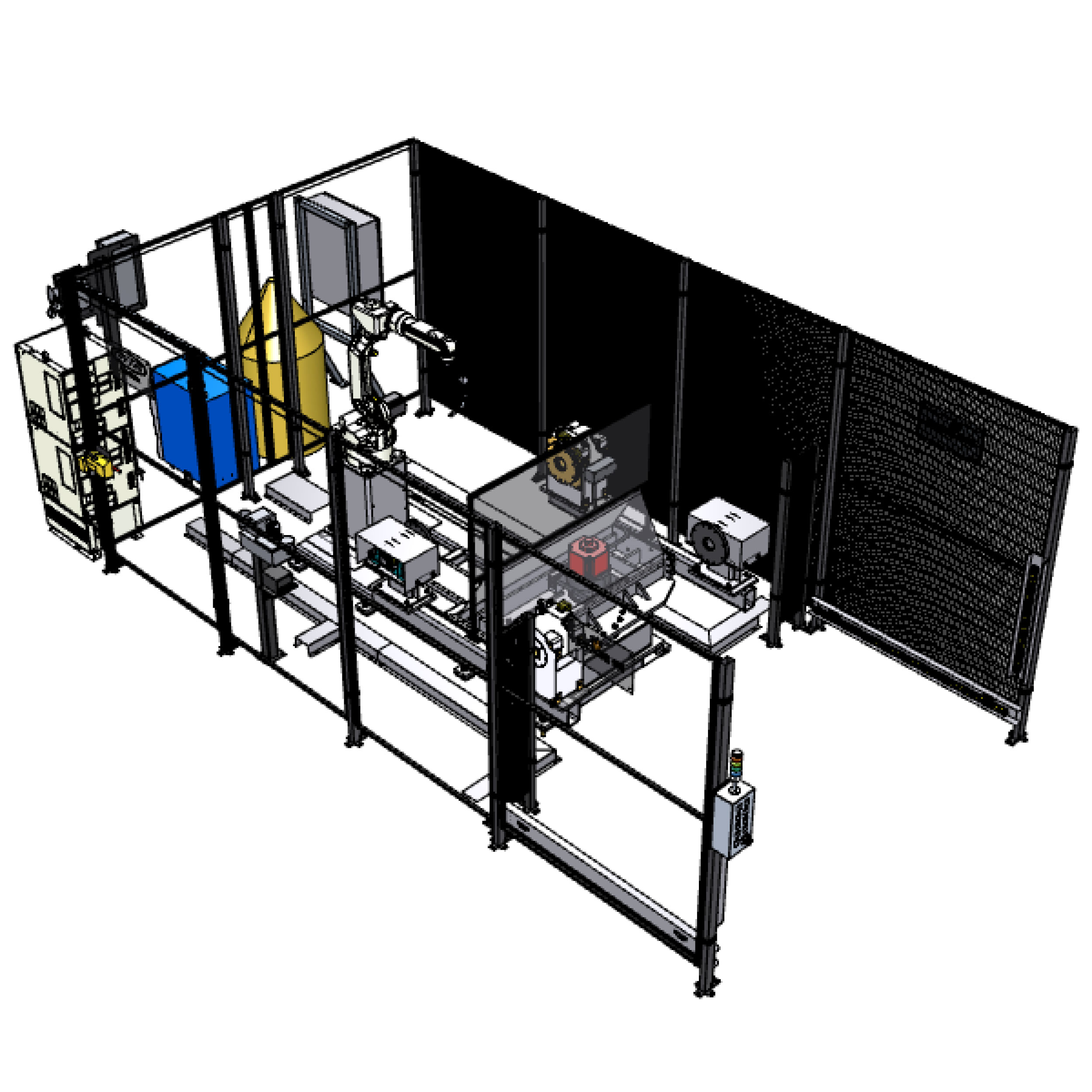

The OTC ROTA-ARC 250 is a rotary-index pre-engineered welding cell that rotates parts between load and weld positions, providing continuous production flow for the 250 kg payload class.
3347mm (131.8”)
Footprint Width
2200mm (86.6")
Footprint Height
6732mm (265.0”)
Footprint Depth
4000kg (8819lbs)
Weight (approx.)
1220mm (59.1")
Standard HS/TS span
Specifications
Dimensions
Footprint Width3347mm (131.8”)
Footprint Height2200mm (86.6")
Footprint Depth6732mm (265.0”)
General
Weight (approx.)4000kg (8819lbs)
Standard HS/TS span1220mm (59.1")
HS/TS swing diameter900mm (35.4")
Applicable manipulatorOTC DAIHEN FD-V8 or FD-B6
