ROTA-ARC Series
ROTA-ARC 1000
Rotary-index arc welding cell, 1000 kg class

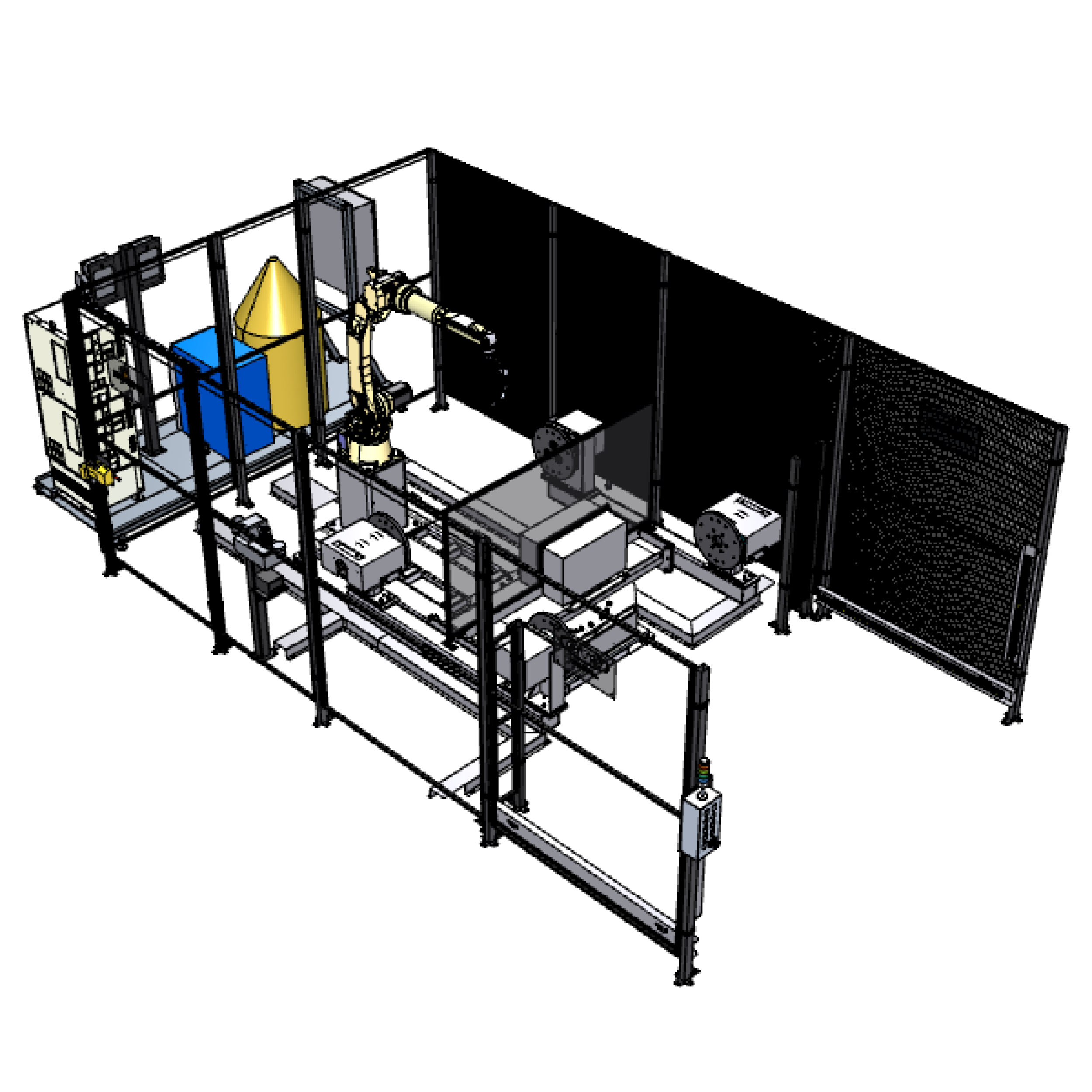

The OTC ROTA-ARC 1000 is a heavy-duty rotary-index welding cell for the 1000 kg payload class, delivering continuous-flow production for large, heavy workpieces.
3398mm (133.8")
Footprint Width
2200mm (86.6")
Footprint Height
6732mm (265.0”)
Footprint Depth
4500kg (9921lbs)
Weight (approx.)
1500mm (59.1")
Standard HS/TS span
Specifications
Dimensions
Footprint Width3398mm (133.8")
Footprint Height2200mm (86.6")
Footprint Depth6732mm (265.0”)
General
Weight (approx.)4500kg (9921lbs)
Standard HS/TS span1500mm (59.1")
HS/TS swing diameter1000mm (39.4")
Applicable manipulatorOTC DAIHEN FD-V8 or FD-B6
