High Payload

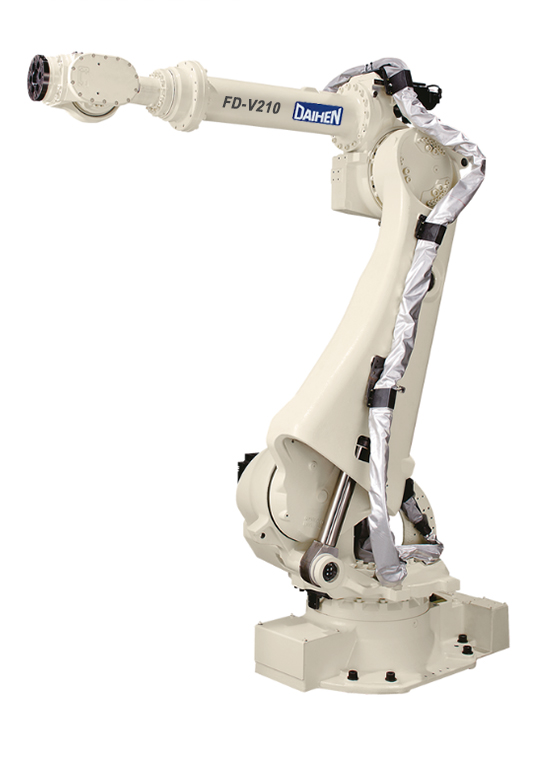

FD-V210
Vertical articulated 6-axis robot, 210 kg wrist payload
The FD-V210 is a heavy-payload 6-axis vertical articulated robot with a 210 kg wrist capacity, suited to large-workpiece handling and spot welding where short cycle times and high-density cell layouts matter.
Vertical articulated type
Structure
6
Number of axes
210 kg
Wrist payload
45 kg (shoulder-mounted max 90 kg)
Upper arm payload
1040 kg
Mass / weight
Specifications
General
StructureVertical articulated type
Number of axes6
Wrist payload (kg)210
Upper arm payload45 kg (shoulder-mounted max 90 kg)
Mass / weight (kg)1040
