High Payload

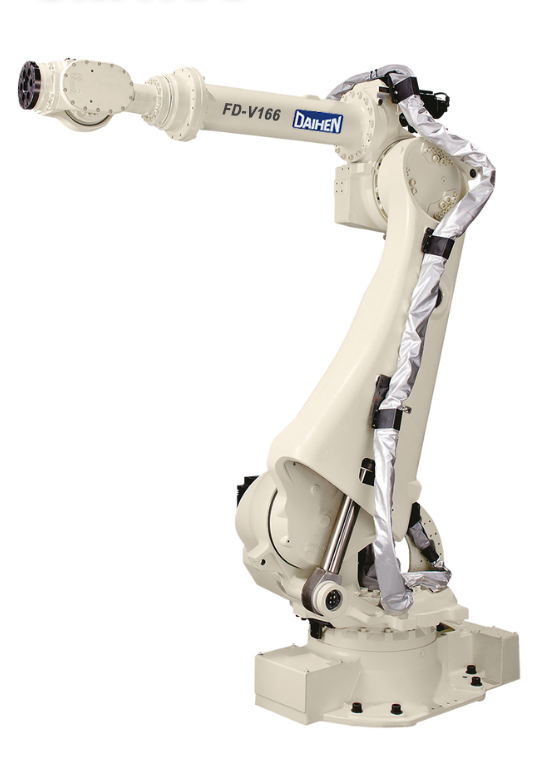

FD-V166
Vertical articulated 6-axis robot, 166 kg wrist payload
The FD-V166 is a heavy-payload 6-axis vertical articulated robot with a 166 kg wrist capacity. The standard material-handling version supports high-productivity cells with reduced footprint and lower power consumption.
Vertical articulated type
Structure
6
Number of axes
166 kg
Wrist payload
45 kg (shoulder-mounted max 90 kg)
Upper arm payload
1010 kg
Mass / weight
Specifications
General
StructureVertical articulated type
Number of axes6
Wrist payload (kg)166
Upper arm payload45 kg (shoulder-mounted max 90 kg)
Mass / weight (kg)1010
