High Payload

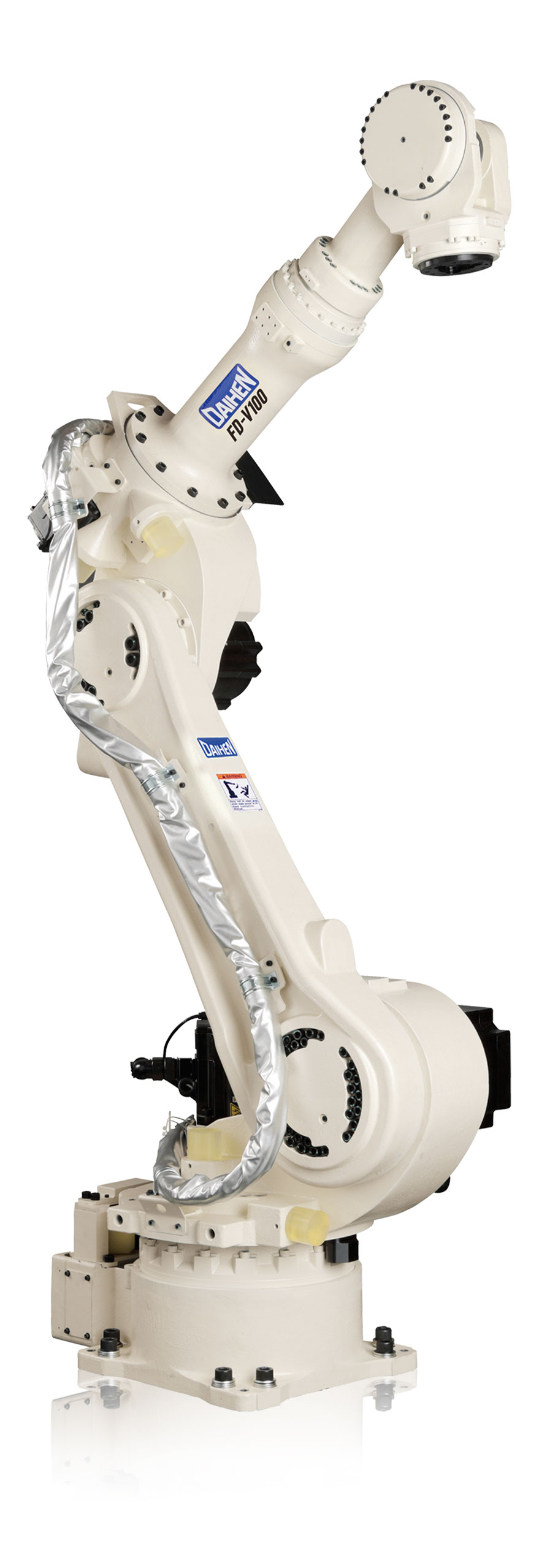

FD-V100
Heavy-payload 6-axis handling robot, 100 kg
The FD-V100 is a 6-axis material-handling robot with a 100 kg payload for high-capacity transfer and handling automation.
721.0N•m
J4 (Swing)
721.0N•m
J5 (Bending)
60.0kg•m2
Allowable Moment of Inertia - J4 (Swing)
60.0kg•m2
Allowable Moment of Inertia - J5 (Bending)
33.7kg•m2
J6 (Twist)
Specifications
Allowable Moment
J4 (Swing)721.0N•m
J5 (Bending)721.0N•m
Allowable Moment of Inertia
Allowable Moment of Inertia - J4 (Swing)60.0kg•m2
Allowable Moment of Inertia - J5 (Bending)60.0kg•m2
J6 (Twist)33.7kg•m2
General
Number of axes6
Maximum capacity220.5lb (100kg)
Horizontal Reach88in (2236mm)
Vertical Reach150in (3809mm)
Arm cross-sectional area7.56m2 x 360º
Mass / weight1698lb (770kg)
Performance
Driving capacity15100W
