ECO-ARC Series
ECO-ARC 290

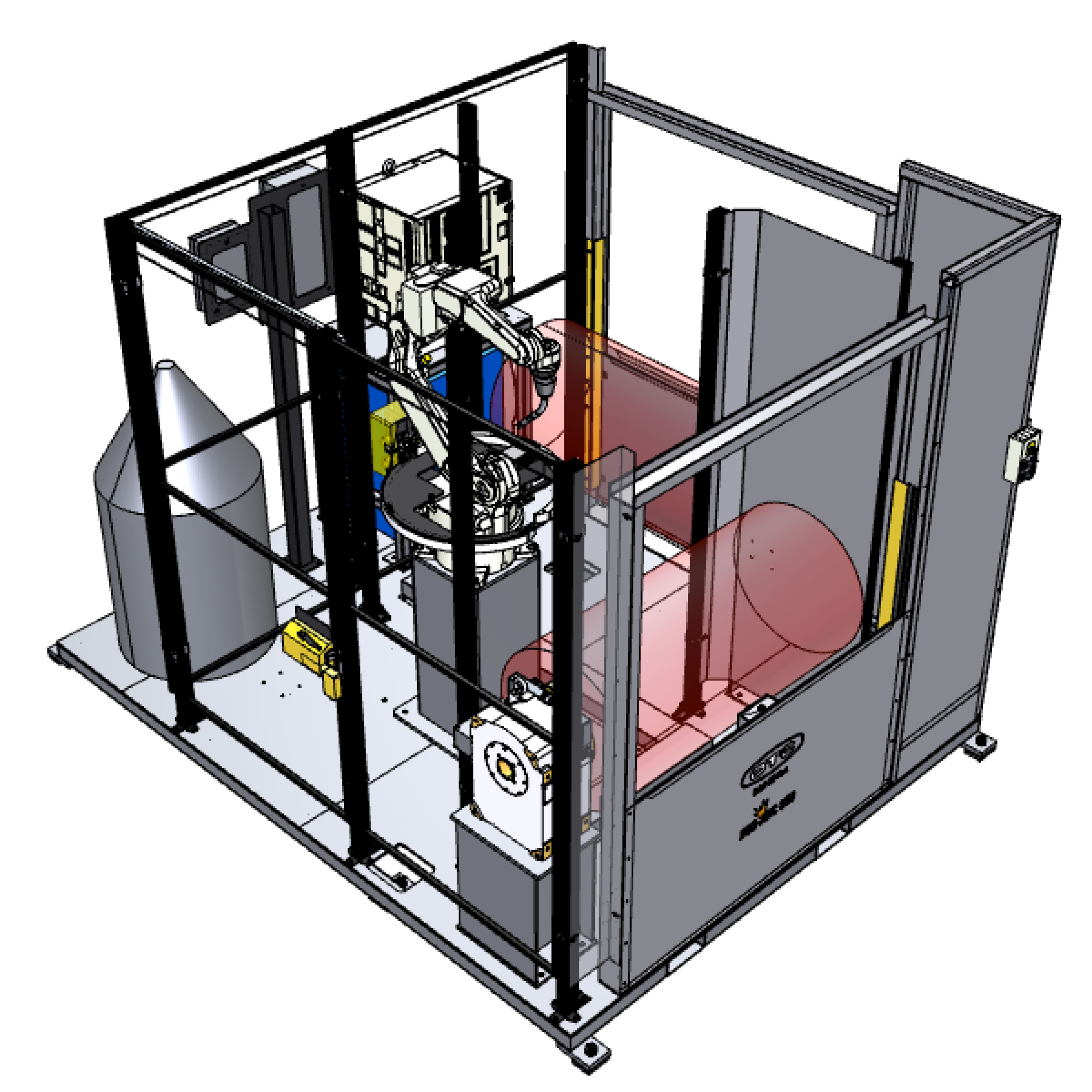

Economical arc welding cell for larger parts, stationary tables
The OTC ECO-ARC 290 is an economical pre-engineered welding cell with a larger work envelope and stationary tables, built for durable, quick-cycle medium-to-high volume production.
2350mm (92.5")
Footprint Width
2329mm (91.7")
Footprint Height
3200mm (126.0")
Footprint Depth
2,500 kg
Weight (approx.)
1219mm (48.00")
Maximum part length
Specifications
Dimensions
Footprint Width2350mm (92.5")
Footprint Height2329mm (91.7")
Footprint Depth3200mm (126.0")
General
Weight (approx.)2,500 kg
Maximum part length1219mm (48.00")
Maximum part diameter609mm (24.00")
Load centerline height962mm (37.9")
Applicable manipulatorOTC DAIHEN FD-V8 or FD-B6
