Tilt-Rotate
A2PF-1000
Tilt-rotate positioner, 1000 kg payload

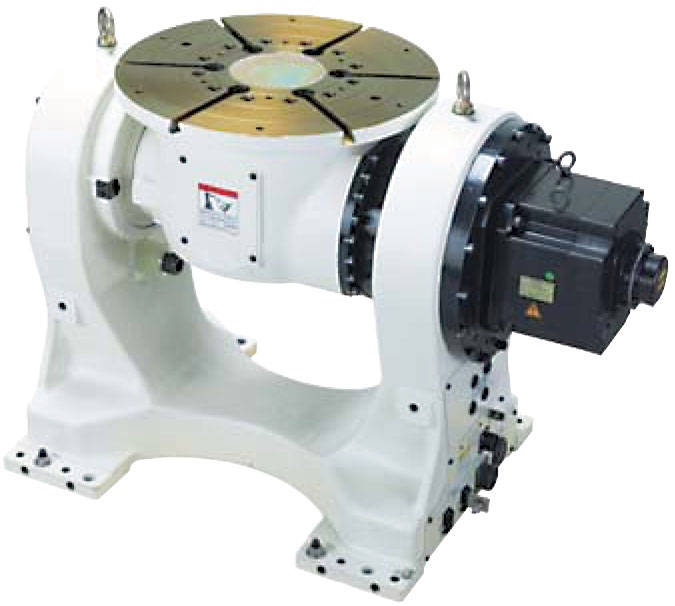

The A2PF-1000 is a heavy-duty tilt-rotate positioner with a 1000 kg (2203 lb) payload, providing two-axis tilt and rotate positioning for large, heavy workpieces.
2203 lbs (1000 kg)
Max. Payload
3.55" (90 mm) at max load
Max. Offset of C.O.G from center
7.01" (178 mm) at max load
Max. Offset of C.O.G from disk surface
1.4 rad/s (82 deg/s)
Rotation Speed (Tilt)
2.9 rad/s (166 deg/s)
Rotation Speed (Rotate)
Specifications
Capacity
Max. Payload2203 lbs (1000 kg)
Max. Offset of C.O.G from center3.55" (90 mm) at max load
Max. Offset of C.O.G from disk surface7.01" (178 mm) at max load
Performance
Rotation Speed (Tilt)1.4 rad/s (82 deg/s)
Rotation Speed (Rotate)2.9 rad/s (166 deg/s)
Moving Range (Tilt)-135 to +135 deg
Moving Range (Rotate)400 deg
Rotational moment (Tilt)3704 N·m
